- FD-200Ⅲ
Products

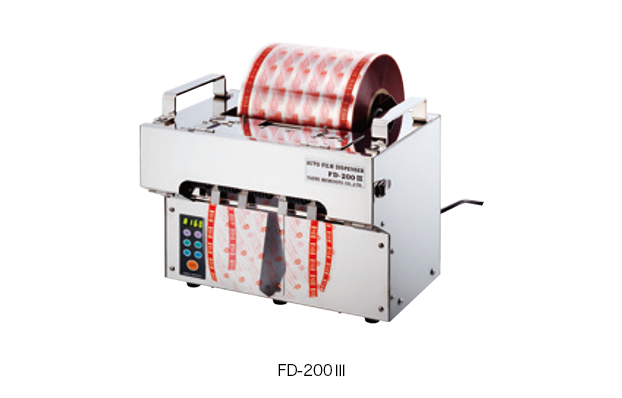

FD-200Ⅲ (with Bobbin)
Cut OPP rolled film into various sizes of lengths with high speed
- Cutting Length
- 20～9999mm
- Film Width
- 200mm
*FD-200Ⅲ and FD-300 are with Bobbin
Features
- ● Reduce the cost and stock. No need stock of pre-cut films in different lengths.
- ● More efficiency and hygiene because other film is placed apart.
- ● High speed in cutting 65pcs per minute (100mm length).
- ● Simply set length by digital counter. Pre-set/Counting function are available.
- ● Exclusive design: Scissors cutting style for sharp cutting edge.
- ● Safety design: Blade is inside that operators cannot touch.
- ● Durability: Stainless steel body and cutting blade last longer.
- ● Film is safer in humidity as it comes out vertically.
| Specifications | |
|---|---|
| Rated Voltage | AC100～240V 50/60Hz |
| Range of Input Voltage | ±5% |
| Power Consumption | 45W |
| Dimension (Excluding boss) | 332×273×232mm（W×H×D） |
| Weight | 11.1kg (Bobbin Type) |
| Film Width | 200mm (max.) |
| Cutting Length | 20～9999mm |
| Film Feeding Speed | 270 mm/Sec. Approximately 65pcs/min. (in case of cutting 100mm with OPP film) |
| Max. Roll Diameter | 210mm |
| Accessories | Power Cord 1.5A Fuse (Built-In Inlet)
Bobbin |
*FD-200Ⅲ、and FD-300 are with Bobbin
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
