LDX-180 is no longer available.

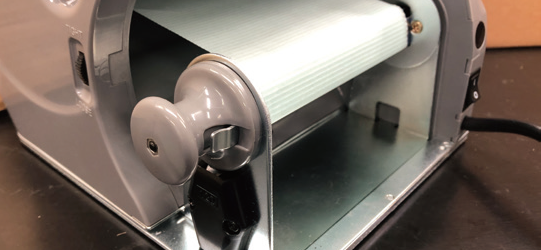

LDX-60・120・180
Operability is the first priority.
Compact/Save Energy.
- Label length
- 10～500mm
- Label Usable Width
- LDX-60 15～60mm
LDX-120 15～120mm
LDX-180 15～180mm
Features
- ● Compact Body/Space-Saving.
- ● C-mode, to count the number of label dispensed.
- ● P-mode, to set up the number of label you need.
- ● Speed Setting by 6 levels.
- ● Usable label length is from 10mm(min.) to 999mm(max.)
- ● Easy to remove backing paper.
No scattering of backing paper. Easy to remove label roll.
| Specifications | |||
|---|---|---|---|
| LDX-60 | LDX-120 | LDX-180 | |
| Rated Voltage | AC100V/120V/220-240V 50/60Hz 40W |
AC100V/120V/220-240V 50/60Hz 45W |
AC100V/120V/220-240V 50/60Hz 50W |
| Range of Input Voltage | 10% | ||
| Power Consumption | 40w | 45w | 50w |
| Dimension | 104×140×215 mm（W×H×D） |
164×157×231 mm（W×H×D） |
224×157×241 mm（W×H×D） |
| Weight | 2.1kg | 3.3kg | 4.6kg |
| Body Material | ABS | ||
| Range of Label Holder Adjustable Width | 20mm～60mm | 20mm～120mm | 20mm～180mm |
| Label Usable Width | 15mm～60mm | 15mm～120mm | 15mm～180mm |
| Label Usable Length | 10mm～500mm | ||
| Label Feeding Speed | 100～200mm/Sec. (Speed setting by 6 levels) |
||
| Max. Roll Diameter | φ200mm | φ250mm | φ300mm |
| Accessories | Hexagonal Spanner | ||
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
