Products

Temporarily unavailable

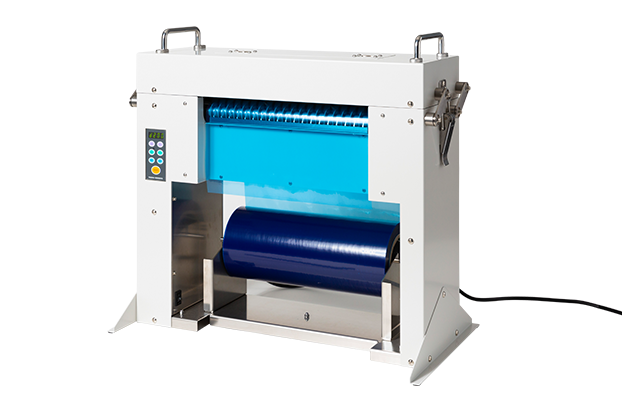

YCUT-300

New style technology for wider protective tapes and films

YCUT-300

Cutting Length
50~7000mm
(Manual Mode)
100~7000mm
(Auto Mode)
Tape Width
100~300mm

Features

  •  Memory Function (3 digital: 6 memories, 4 digital: 1 memory).
  •  Tape width is 300mm max.
  •  Compact body. Depth is only 175mm.

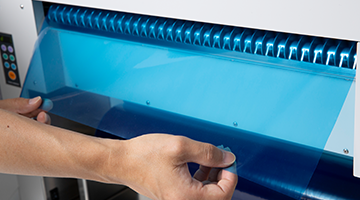

*Above image is YCUT-500.

*Above image is YCUT-500.

Specifications
Cutting Length 50~7000mm(Manual Mode)
100~7000mm(Auto Mode)
Tape Width 100~300mm
Max. Roll Diameter 200mm
Feeding Speed 250mm/Sec. (Protective Film)
29pcs/min. (Protective Film in 100mm cutting length)
Rated Voltage AC100~240V
50/60Hz 45W
Dimension 520×465×175mm
(W×H×D)
Weight 21kg(Excluding Bobbin)

*Some of usable tapes may not cut as depends on the material and tape brand.

*Cutting length may be beyond cutting tolerance as depends on the type of tapes.

*Specifications are subject to change without prior notice.

Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.

Customized Solutions

Depending on your usage and using tapes.

Contact Us

TEL

+81-3-3888-8751+81-3-3888-8751

Please feel free to call us.
