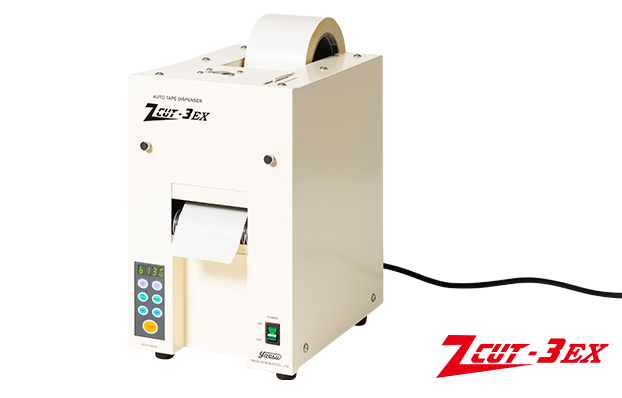

ZCUT-3EX
Apply on different kinds of industry and tapes
- Cutting Length
- 30～7000mm
(Manual Mode)
100～7000mm
(Auto Mode)
- Tape Width
- 15～80mm
- Usable Tapes
- Protective Film, Aluminum Foil, Craft, Cloth, Glass Cloth, Paper, Double-Sided Tape and Others.
Features
- ● New Structure of Cutting Method.
- ● Using L type blade of utility knife which is easy to get and to change as well.
- ● Speed and Efficiency improved.
- ● Outside Diameter up to max. 240mm is possible to set.
- ● Memory function of cutting length/Preset Counter are available.
■Example of Customized Products
- ZCUT-3EXRP
- RP Unit
For removing backing paper
of double-sided tape
- Clutch Bobbin
For slack prevention
of Non-adhesive tape
- Silicone Roller
Scratch prevention
- Anti-static brush
ESD protection
| Specifications | |
|---|---|
| Cutting Length | 30～7000mm (Manual Mode) 100mm～7000mm (Auto Mode) |
| Tape Width | 15～80mm |
| Max. Roll Diameter | 240mm |
| Bobbin Diameter | 75mm |
| Usable Tapes | Protective Film, Aluminum Foil, Craft, Cloth, Glass Cloth, Paper, Double-Sided Tape and Others. |
| Accessories | Power Cord Bobbin (φ75, φ31) 2A Fuse (Built-in Inlet) Hexagonal Spanner Spare blade (6pcs) |
| Dimension | 191×302×247mm (W×H×D) |
| Weight | 9.5kg |
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
