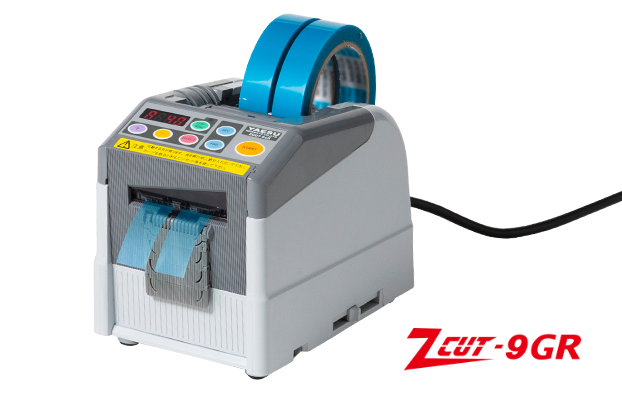

ZCUT-9GR
New Additional Function
New Evolutionary Model
- Cutting Length
- 5～999mm
- Tape Width
- 6～60mm
- Usable Tapes
- Craft, PP, Vinyl, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others
Features
- ● Six different lengths can be programmed for cutting.

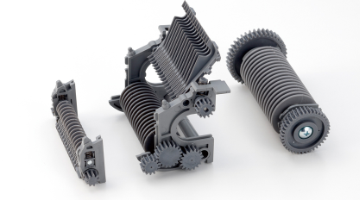

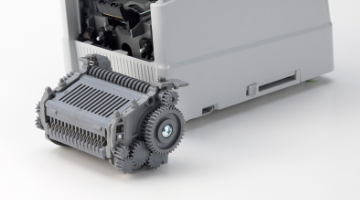

- ● Remove Roller Unit without using any tools and easy to take maintenance.
- ● Two roll tapes can be cut at the same time due to Dual Photo Sensor.
- ● Preset Mode and Loop Mode are available.
- ● A cut piece of tape is positioned to take out.
- ● Set a tape without using bobbin.
- ● Non-adhesive tapes can be cut.
- ● Build-in Separator for cutting two rolls tape, Guide Plate, and Blade Oil.
■ OPTION
Only supply with ZCUT-9GR.
- ZCUT-9GRRP▶
Cut a tape with backing paper while removing it.
- Arm Stand
- Programing Function
Six different lengths can be programmed for cutting
| Specifications | |
|---|---|
| Cutting Length | 5～999mm |
| Tape Width | 6～60mm |
| Tape Thickness | 0.05～0.3mm |
| Usable Tapes | Craft, PP, Vinyl, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others |
| Feeding Speed | 220mm/sec. Approximately 50pcs/min. (in the case of cutting 100mm with craft tape) |
| Max. Roll Diameter | 300mm |
| Accessories | Separator, Blade Oil, Guide Plate, Power Cord |
| Body Material | ABS |
| Rated Voltage | AC 100-240V 50/60Hz 25W 2A Fuse (Built-In Inlet) |
| Dimension | 116×140×213mm （W×H×D） |
| Weight | 1.6kg |
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
