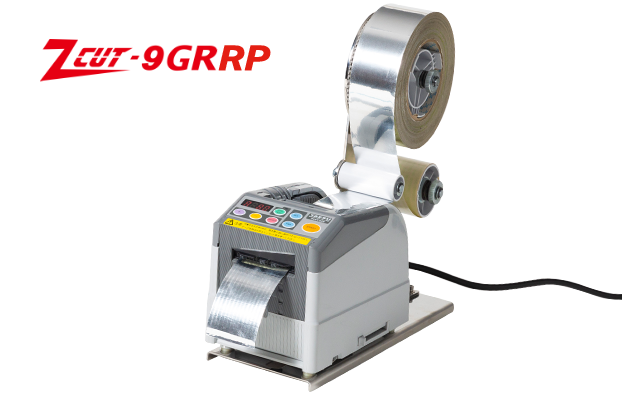

ZCUT-9GRRP

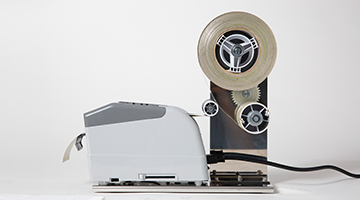

Removing Paper Unit is installed to peel off backing paper
- Cutting Length
- 5～999mm
- Tape Width
- 6～60mm
- Usable Tapes
- Tape with backing paper, Aluminum Foil and Copper Foil
Features
- ● ZCUT-9GRRP has a special function to peel off the backing paper of tape.
- ● Maximum outside diameter of roll is 150mm. Only supplied with ZCUT-9GR.
- ● Aluminum Foil and Copper Foil tape are usable.
- ● Please send a fresh roll of sample tape to us for testing before using this model.
| Specifications | |
|---|---|
| Cutting Length | 5～999mm |
| Tape Width | 6～60mm |
| Usable Tapes | Tape with backing paper, Aluminum Foil, Copper Foil |
| Feeding Speed | 220mm/sec.（When cutting Craft Tape） |
| Max. Roll Diameter | 150mm （Inside diameter: 75mm） |
| Accessories | Separator, Blade Oil, Guide Plate, Power Cord, 2A Fuse (Built-In Inlet) |
| Body Material | ABS |
| Rated Voltage | AC 100-240V 50/60Hz 25W |
| Dimension | 116×302×320mm （W×H×D） |
| Weight | 3.3kg |
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
