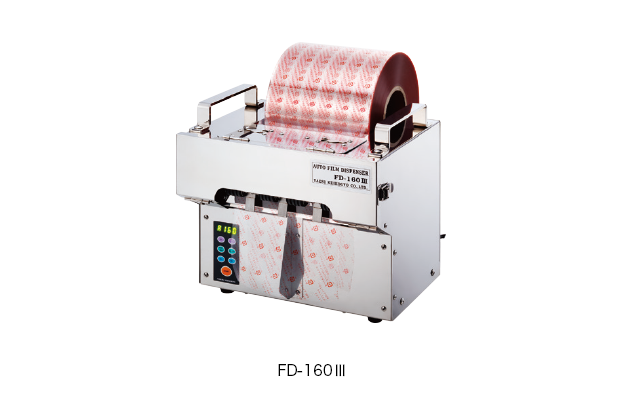

FD-160Ⅲ
(Film Holder Type)
Cut OPP rolled film into various sizes of lengths with high speed

FD-160Ⅲ

Cutting Length
20~9999mm
Film Width
160mm

Features


  •  Reduce the cost and stock. No need stock of pre-cut films in different lengths.
  •  More efficiency and hygiene because other film is placed apart.
  •  High speed in cutting 65pcs per minute (100mm length).
  •  Simply set length by digital counter. Pre-set/Counting function are available.
  •  Exclusive design: Scissors cutting style for sharp cutting edge.
  •  Safety design: Blade is inside that operators cannot touch.
  •  Durability: Stainless steel body and cutting blade last longer.
  •  Film is safer in humidity as it comes out vertically. .

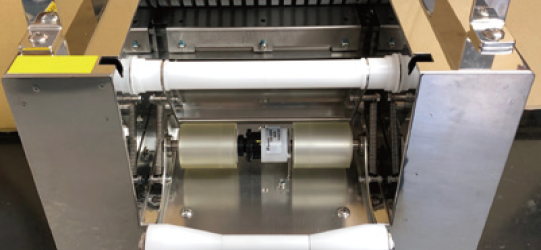

Film Holder of FD-160Ⅲ

*FD-200Ⅲ and FD-300 are with Bobbin。

Film Holder of FD-160Ⅲ

Option

Exclusive footstool for FD-160

Exclusive footstool for FD-160
Specifications
Rated Voltage AC100-240V 50/60Hz
Range of Input Voltage ±5%
Power Consumption 25W
Dimension (Excluding boss) 292x273x232mm(W×H×D)
Weight 10.6kg (Film Holder Type)
Film Width 160mm (max.)
Cutting Length 20~9999mm
Film Feeding Speed 270 mm/Sec.
Approximately 65pcs/min. (in case of cutting 100mm with OPP film)
Max. Roll Diameter 210mm
Accessories Power Cord 1.5A Fuse (Built-In Inlet)

*Specifications are subject to change without prior notice.

Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.

Customized Solutions

Depending on your usage and using tapes.
