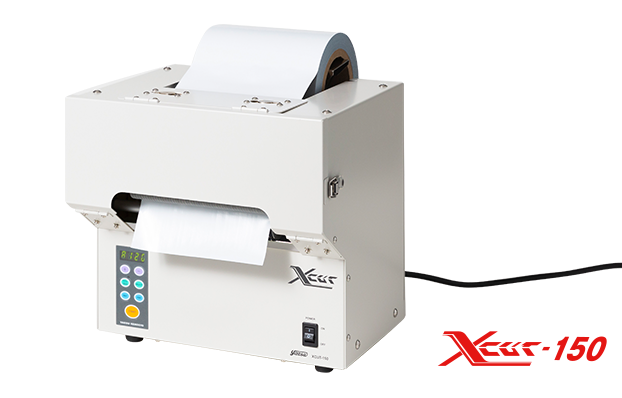

XCUT-150
Straight Cut Edge
Designed for low noise and less vibration

XCUT-150

Cutting Length
30~9999mm
(Manual Mode)
60~9999mm
(Auto Mode)
Tape Width
20~150mm
Usable Tapes
Craft, PP, Vinyl, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others.

Features

  •  Memory Function (3 digital: 6 memories, 4 digital: 1 memory).
  •  Preset Counter, Loop Function.
  •  Memorize the number of the present cutting pieces.
  •  Auto feeding that cutting tape is ready to remove
    after taking the piece of tape.

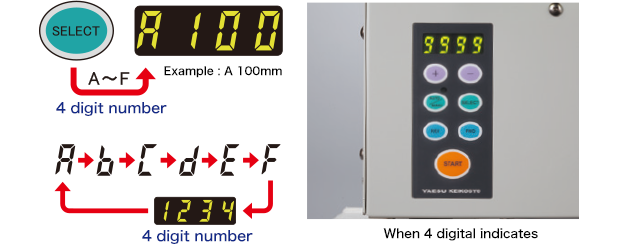

Panel Display

Confirm the cutting length

Confirm the cutting length

OPTION

Exclusive footstool
for XCUT-150

Exclusive footstool for XCUT-150
Specifications
Cutting Length 30~9999mm (Manual Mode)
60mm~9999mm (Auto Mode)
Tape Width 20~150mm
Max. Roll Diameter 200mm
Tape Thickness 0.05~0.3mm
Usable Tapes Craft, PP, Vinyl, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others.
Feeding Speed 72pcs/min. (Craft tape in 100mm cutting length)
330mm/Sec. (Craft tape)
Motor Feeding : DC Brushless Motor 30W
Cutting : DC Brushless Motor 15W
Accessories Bobbin, Power Cord
Rated Voltage AC 100-240V 50/60Hz 25W
2A Fuse (Built-In Inlet)
Dimension 292×276×239mm (W×H×D)
Weight 9.7kg (Excluding Bobbin)

*Some of usable tapes may not cut as depends on the material and tape brand.

*Cutting length may be beyond cutting tolerance as depends on the type of tapes.

*Specifications are subject to change without prior notice.

Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.

Customized Solutions

Depending on your usage and using tapes.
