Products

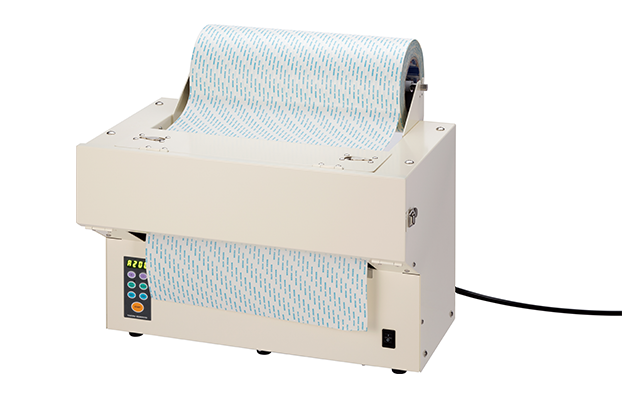

XCUT-300
Straight Cut Edge
Designed for low noise and less vibration
- Cutting Length
- 30～9999mm
(Manual Mode)
100～9999mm
(Auto Mode)
- Tape Width
- 50～300mm
Features
- ● Memory Function (3 digital: 6 memories, 4 digital: 1 memory).
- ● Preset Counter, Loop Function.
- ● Memorize the number of the present cutting pieces.
- ● Auto feeding that cutting tape is ready to remove
after taking the piece of tape.

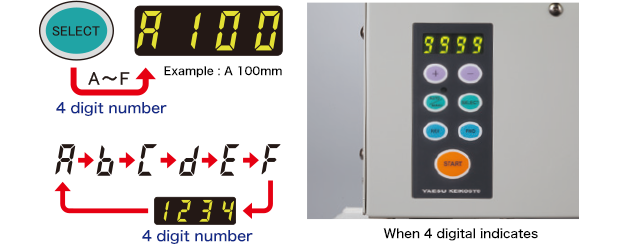

■Panel Display
Confirm the cutting length
| Specifications | |
|---|---|
| Cutting Length | 30-9999mm (Manual Mode) 100-9999mm (Auto Mode) |
| Tape Width | 50～300mm |
| Max. Roll Diameter | 200mm |
| Tape Thickness |
0.05～0.3mm |
| Feeding Speed | 55pcs/min. (Craft tape in 100mm cutting length) 250mm/Sec. (Craft tape) |
| Rated Voltage | AC 100-240V 50/60Hz 45W |
| Dimension | 435×348×323mm (W×H×D) |
| Weight | 17kg (Excluding Bobbin) |
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
