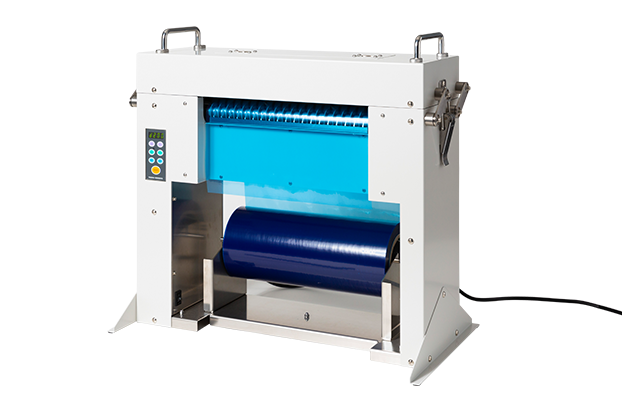

YCUT-300
New style technology for wider protective tapes and films
- Cutting Length
- 50～7000mm
（Manual Mode）
100～7000mm
（Auto Mode）
- Tape Width
- 100～300mm
Features
- ● Memory Function （3 digital: 6 memories, 4 digital: 1 memory）.
- ● Tape width is 300mm max.
- ● Compact body. Depth is only 175mm.

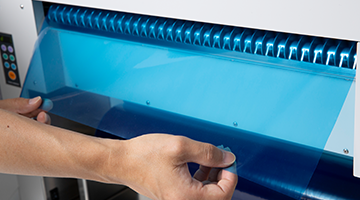

*Above image is YCUT-500.
| Specifications | ||
|---|---|---|
| Cutting Length | 50～7000mm（Manual Mode） 100～7000mm（Auto Mode） |
|
| Tape Width | 100～300mm | |
| Max. Roll Diameter | 200mm | |
| Feeding Speed | 250mm/Sec. (Protective Film) 29pcs/min. (Protective Film in 100mm cutting length) |
|
| Rated Voltage | AC100～240V 50/60Hz 45W |
|
| Dimension | 520×465×175mm （W×H×D） |
|
| Weight | 21kg（Excluding Bobbin） | |
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
