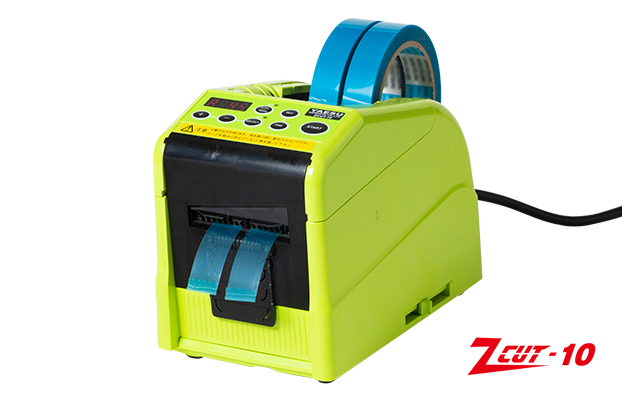

ZCUT-10
Tape Dispenser with Edge Folding Function

ZCUT-10

Cutting Length
5~999mm
Tape Width
6~60mm
Usable Tapes
Craft, PP, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others

Features

  •  Edge Folding Function. Easy to remove tape.
  •  Six different lengths can be programmed for cutting.
  •  Two roll tapes can be cut at the same time due to Dual Photo Sensor.
  •  A cut piece of tape is positioned to take out.
  •  Set a tape without using bobbin.
  •  Non-adhesive tapes can be cut.
  •  Build-in Separator for cutting two rolls tape, Guide Plate, and Blade Oil.

OPTION

Only supply with ZCUT-10.

ZCUT-10RP
ZCUT-10RP
Cut tape with backing paper while removing it.
Arm Stand
Arm Stand
Folding a tape edge and easy to remove.
Folding a tape edge and easy to remove.

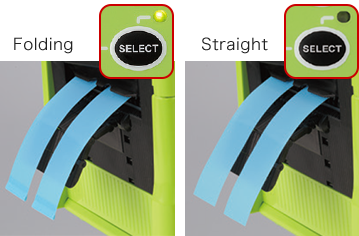

Easy to change the function for folding and normal cutting.
Easy to change the function
for folding and normal cutting.

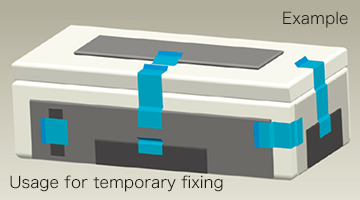

Programing Function
Programing Function
Six different lengths can be programmed for cutting.
Specifications
Cutting Length 5~999mm
(folding 15~999mm)
Folding Length 7mm
Tape Width 6~60mm
Max. Roll Diameter 300mm
Tape Thickness 0.05~0.3mm
Usable Tapes Craft, PP, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others
Feeding Speed 220mm/sec.
Approximately 50pcs/min.
(in the case of cutting 100mm with craft tape)
Accessories Separator, Blade Oil, Guide Plate, Power Cord
Rated Voltage AC 100-240V 50/60Hz 25W
2A Fuse (Built-In Inlet)
Dimension 116×148×222mm (W×H×D)
Weight 1.83kg

*Some of usable tapes may not cut as depends on the material and tape brand.

*Cutting length may be beyond cutting tolerance as depends on the type of tapes.

*Specifications are subject to change without prior notice.

Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.

Customized Solutions

Depending on your usage and using tapes.
