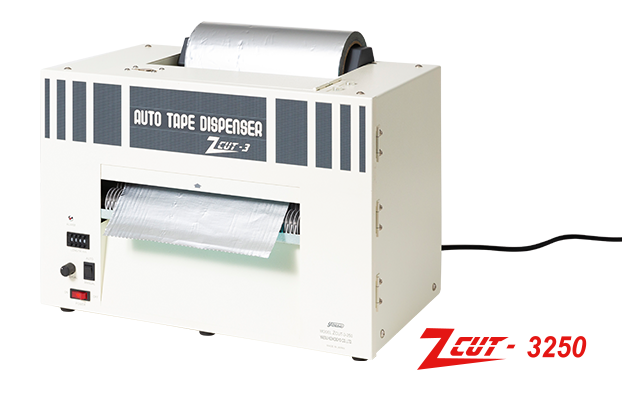

ZCUT-3250
Adjust the width range in accordance with the selected tape

ZCUT-3250

Cutting Length
40~9999mm
Tape Width
15~250mm
Usable Tapes
Protective Film, Aluminum Foil, Craft, Cloth, Vinyl, Glass Cloth, Paper, Gummed, Mylar, Double-Sided, Combination Tape.Please ask us for others.

Features

  •  Simply set length by digital counter.
  •  Auto mode enables to cut tape continuously at regular interval.
    (To change interval, turn the control knob)
  •  In Manual mode, take the cut tape and press Start Switch to dispense a new piece of tape.
  •  Greater efficiency on your taping work.
  •  Non adhesive materials are usable (Protection Tape, Aluminum Foil Tape etc.).
  •  Designed for heavy duty usage in long hours of time.

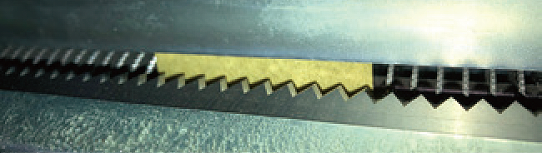

ZCUT-3150 and ZCUT-3250 are using saw blade.

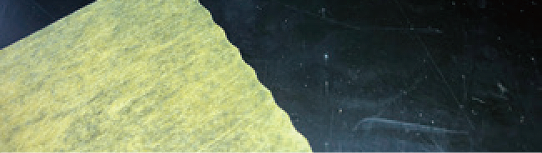

Cutting edge is not 100% straight (little bit waving).



Specifications
Cutting Length 40~9999mm
Tape Width 15~250mm
Usable Tapes Protective Film, Aluminum Foil, Craft, Cloth, Vinyl, Glass Cloth, Paper, Gummed, Mylar, Double-Sided, Combination Tape.Please ask us for others.
Max. Roll Diameter 200mm (with Optional Stand 400mm)
Bobbin Diameter 75㎜
Rated Voltage AC 100-240V 50/60Hz 600W
Dimension 432×298×247mm(W×H×D)
Weight 18.0kg

*Some of usable tapes may not cut as depends on the material and tape brand.

*Cutting length may be beyond cutting tolerance as depends on the type of tapes.

*Specifications are subject to change without prior notice.

Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.

Customized Solutions

Depending on your usage and using tapes.
