Products
ZCUT-870
Evolutionary Turntable Type of Tape Dispenser
- Cutting Length
- 15～70mm
- Tape Width
- 3～25mm
- Usable Tapes
- Filament, Polyimide, Acetate, Glass Cloth, Double-sided, Aluminum Foil, Cellophane, Masking, Polyethylene, Copper Foil, Cotton Cloth, Teflon, Paper Tape and Others
Features
- ● Increase Productivity for your taping jobs.
- ● Movable Sensor can be set at the place where Turntable stops.
- ● Possible to set the number of Tape-cutting.
- ● Simple and Easy Tape-setting.
- ● Bobbin-free structure.
- ● Blades are fixed and no need for adjustment. Easy to change as well.
- ● Capable to cut tough tapes; Polyimide, Glass Cloth and Acetate Cloth tapes etc.
- ● Edge of Cut-tape is sharp and neat.
- ● Change the Cut-length and Spacing by knob.
- ● Number of cutting pieces can be set.

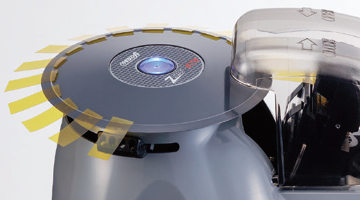

- Polyimide Tape

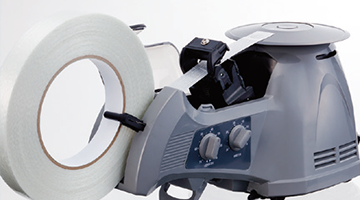

- Filament Tape

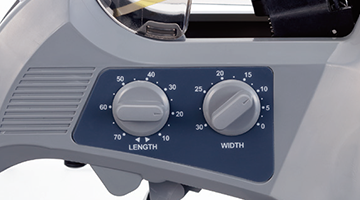

- Scale is on the knob as a guide.
Customized machine for Security Tape is available.
- Tamper-evident on Turntable
- No Tamper-evident
■OPTION
Only supply with ZCUT-870.
ZCUT870RP
Cut tape with backing paper while removing it.
| Specifications | |
|---|---|
| Cutting Length | 15～70mm |
| Tape Width | 3～25mm |
| Usable Tapes | Filament, Polyimide, Acetate, Glass Cloth, Double-sided, Aluminum Foil, Cellophane, Masking, Polyethylene, Copper Foil, Cotton Cloth, Teflon, Paper Tape and Others |
| Max. Roll Diameter | 150mm |
| Fuse | 2A |
| Rated Voltage | AC 100-240V 50/60Hz 25W |
| Body Material | ABS |
| Dimension | 126×150×258mm (W×H×D) |
| Weight | 1.9kg |
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Customized Solutions
Depending on your usage and using tapes.
