Removing Paper Unit is installed to peel off backing paper
- Cutting Length
- Tape Width
- Usable Tapes
- Tape with backing paper, Aluminum Foil and Copper Foil

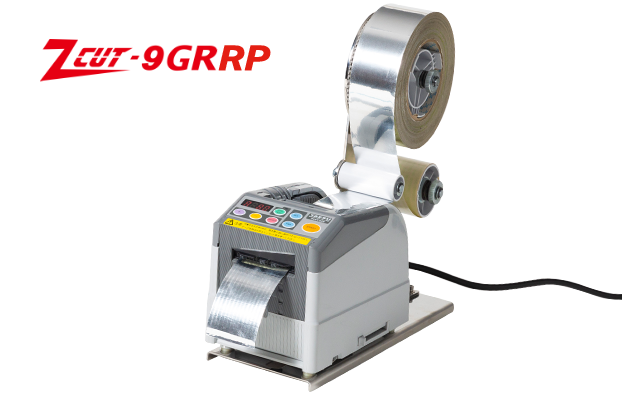

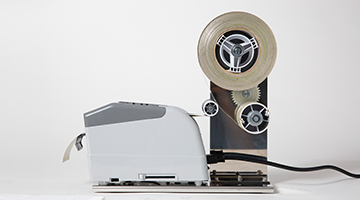

- ● ZCUT-9GRRP has a special function to peel off the backing paper of tape.
- ● Maximum outside diameter of roll is 150mm. Only supplied with ZCUT-9GR.
- ● Aluminum Foil and Copper Foil tape are usable.
- ● Please send a fresh roll of sample tape to us for testing before using this model.
|Usable Tapes||Tape with backing paper, Aluminum Foil, Copper Foil|
|Feeding Speed||220mm/sec.（When cutting Craft Tape）|
|Max. Roll Diameter||150mm （Inside diameter: 75mm）|
|Accessories||Separator, Blade Oil, Guide Plate, Power Cord, 2A Fuse (Built-In Inlet)|
|Rated Voltage||AC 100-240V 50/60Hz 25W|
*Some of usable tapes may not cut as depends on the material and tape brand.
*Cutting length may be beyond cutting tolerance as depends on the type of tapes.
*Specifications are subject to change without prior notice.
Ex. Safety Cover, Arm Stand and Removing Liner Paper etc.
Depending on your usage and using tapes.
